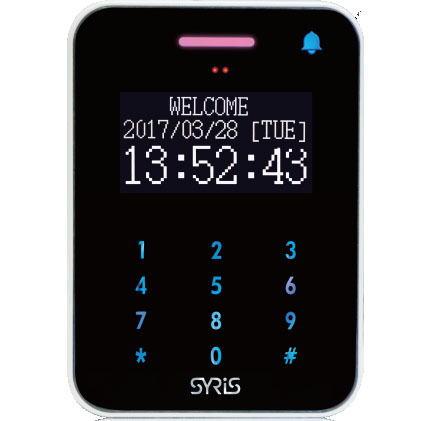

  • Stylish design,sensitive touch keypad with white backlight.

  • Communication/Tool Setting:Ethernet/Wi-Fi

  • Multi-Access Modes:

      -Waving sensor:IR(Infared)hands free switch.(Adjustable Read Range:0-10cm)

      -Transponders:13.56MHz Card(Read Range:1-5cm)

      -Touch panel:Password to Access or Activate Doorbell.

  • On-board relay,for use with extra door、bell 、switch or alarm system

  • Option : Support Modbus

Product Details



Card Frequency ISO14443A(Mifare)/B/ISO15693/NTAG203/DESFire
Read Card Time 0.1 Sec.
Keypad 13(Capacitive Touch)
IR Sensor 1 IR sensor for waving hand to access door,adjustable range 0-10cm
Active RFIDSupport 2.45GHz xtive RFID(option)
Interface RS485 and Wiegand(26/32/34/35/37/42/66 Bit)
Ethernet10M/100M Ethernet Port
Wi-Fi    802.11 b/g/n
Baud Rate  19,200 bps(4,800~230,400bps)
Capacity of Records100,000
Card Capacity 10,000
Voice OutputOn-Board Buzzer
Status Indicator    LED (RGB)
Digital Input

Up to 3
(1 DI+2 no-voltage DI share the same port with wiegand)

Digital OutputUp to 4(2 Relay output + 2 open collector DO
share the same port with wiegand)
Operating Temperature-10℃~+55℃
Storage Temperature-20℃~+70℃
Power8V ~ 28V DC / 1W ~ 6W


124(W) x 90(H) x 27(D) mm(No Wire Included)
