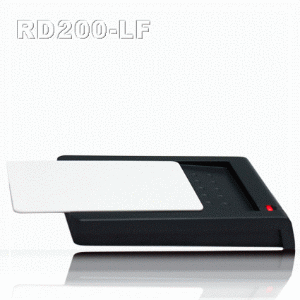

RD200-LF ( EM4100 / FDX-B )

RD200-LF ( EM4100 / FDX-B )

Features:

Reader with magnetic back housing which can be held on meta materials
(OA partition, PC outer case...etc.)

USB keyboard emulation, Plug and Play or Serial Port emulation

Built-in antenna, two colors LED visual indication and Buzzer alert

Auto-detect card and UID

Provide API development tool

Update firmware through USB interface

Support Decimal and Hexadecimal ID formats

Unique serial number for identification

Built-in user data storage space

CE Certification
Product Details

Applications:

  • Program Development

  • Access Control

  • PC Authentication

  • ID Identification

  • Print control

  • Password Login



Specification:

Frequency              125 KHz

Tag Supported          EM4100 compatible class / SYRIS/ FDX-B(ISO11784/EM4150/EM4305/HITAG-S)

Reading Range          0~6cm

Communication          USB 1.1/2.0 Compatible, USB Mini 5-pin connector

Antenna                Build-in Antenna

LED Indicator          Two-color LED visual indication

Buzzer                 Yes

Charge Power           Power supply through USB, 5V / 200mA

Operating Temperature  -20˚C ~ 70˚C

Storage Temperature    -30˚C ~ 80˚C

Dimension(WxLxH)       105 x 72 x 16mm
