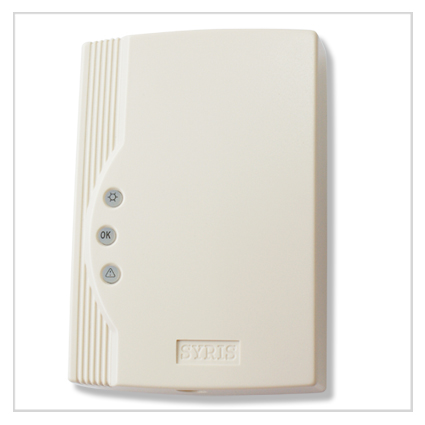

SYRDS5

SYRDS5

Feature:

• 3 LED status indicators.
• Built-in Anti-Tamper protection.
• Communication : RS485 / Wiegand.
• Built-in Watchdog to prevent system from halting.
• Built-in Buzzer.
• Option : Support Modbus


Product Details

Specification:

Transmit Frequency125KHz / 13.56MHz / ISO14443-A/B  / ISO-15693 / Mifare NTAG203 / DESFire
Read Range2cm ~8cm (HF type : 1cm~5cm)
Card Read Time0.1 sec (typical)
CommunicationRS485 and Wiegand(26/32/34/42/66 bits)
Anti-Tamper FacilityBuilt-in
Buad Rate19,200bps (4,800bps ~ 115,200bps)
Beep ToneBuilt-in Buzzer
LED Indicator3 LED
Digital Input

Up to 3
(1 DI+2 no-voltage DI share the same port with wiegand)

Digital Output

Up to 3(1 Relay output + 2 open collector DO
share the same port with wiegand)

Anti-Tamper FacilityBuilt-in
Operating / Storage Temperature-20˚C ~ +70˚C / -30˚C ~ +80˚C
Input Voltage8V ~ 28V DC
Dimensions(mm)83W x 121H x 29.5D
Ordering Information

•SYRDS5-L1-BSY : 125KHz, Beige color

•SYRDS5-H1-BSY : 13.56MHz, Beige color
