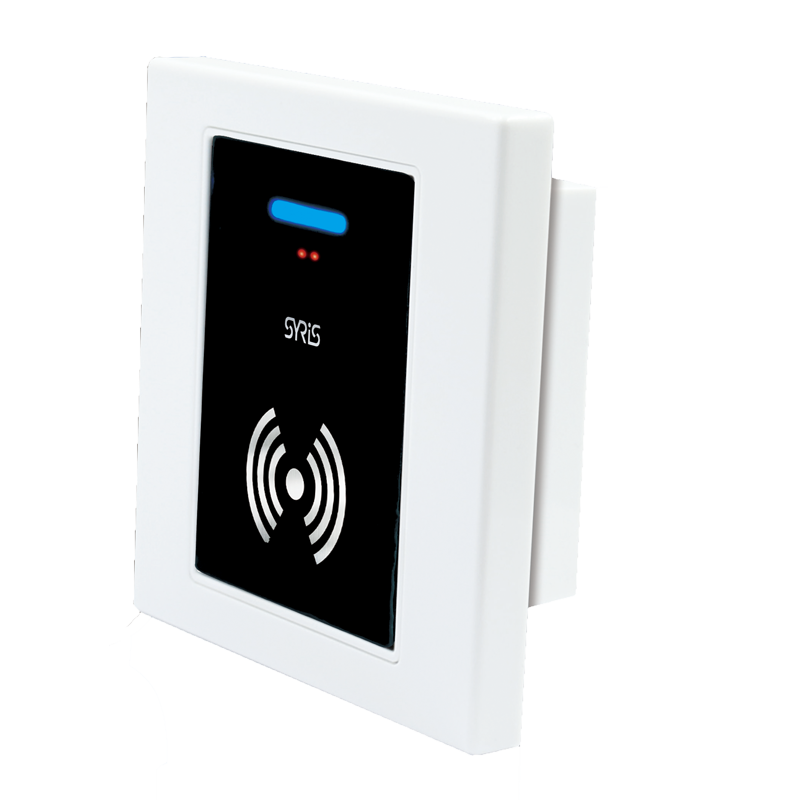

SYUR86N
Features：
Support 840 to 960MHz full UHF RFID frequency.
Support 13.56MHz HF RFID frequency.
Multi communication interface.
Multi-Access Modes：
-Waving sensor：IR hands free switch
-Transponders：13.56 MHz RFID CardOption : Support Modbus
Features：
Support 840 to 960MHz full UHF RFID frequency.
Support 13.56MHz HF RFID frequency.
Multi communication interface.
Multi-Access Modes：
-Waving sensor：IR hands free switch
-Transponders：13.56 MHz RFID Card
Option : Support Modbus
Specification：
SpecModel | SYUR86 | |||
| Sub-Model | SYUR86-HU1 | SYUR86N-HU1 | ||
| Frequency | 840~960MHz + 13.56MHz | |||
| Interface | RS485/Wiegand | RS485/Wiegand/Ethernet/Wi-Fi | ||
| Wiegand | Wiegand(support26/32/34/35/37/42/66 bits) | |||
| RS485 baud rate | 19,200bps(4,800~460,800) | |||
| Ethernet | X | 10M/100M Ethernet Port | ||
| Wi-Fi | X | 802.11 b/g/n | ||
| Status Indicator | Tricolor LED(RGB) & Beeper | |||
| Active RFID | Support 2.45GHz xtive RFID(option) | |||
| IR Sensor | 1 IR sensor for waving hand to access door (adjustable range 0 ~ 10cm) | |||
| UHF Protocols | EPC Class 1 Gen 2;ISO 18000-6C | |||
| UHF Read Range | Up to 20 cm(depends on tag's antenna) | |||
| HF Protocols | ISO15693/ISO14443A/ISO14443B/DESFire/NTAG203 | |||
| HF Read Range | Up to 5 cm | |||
| Digital Input | Up to 3 (1 no-voltage DI+2 for no-voltage DI share the same port with Wiegand) | |||
| Digital Output | Up to 4(2 Relay output+ 2 for Relay share the same port with Wiegand) | |||
Capacity of Cards/Records | X | 10,000/100,000 | ||
| Operating Temperature | -10℃~+60℃ | |||
| Storage Temperature | -20℃~+70℃ | |||
| Power | 8V ~ 28V DC / 1W ~ 6W | |||
Size(mm) | 86 (W) x 86 (H)x 41.6 (D)mm (No Wire Included) | |||
